Excellent dosing-metering solution for driers, process mills and blenders

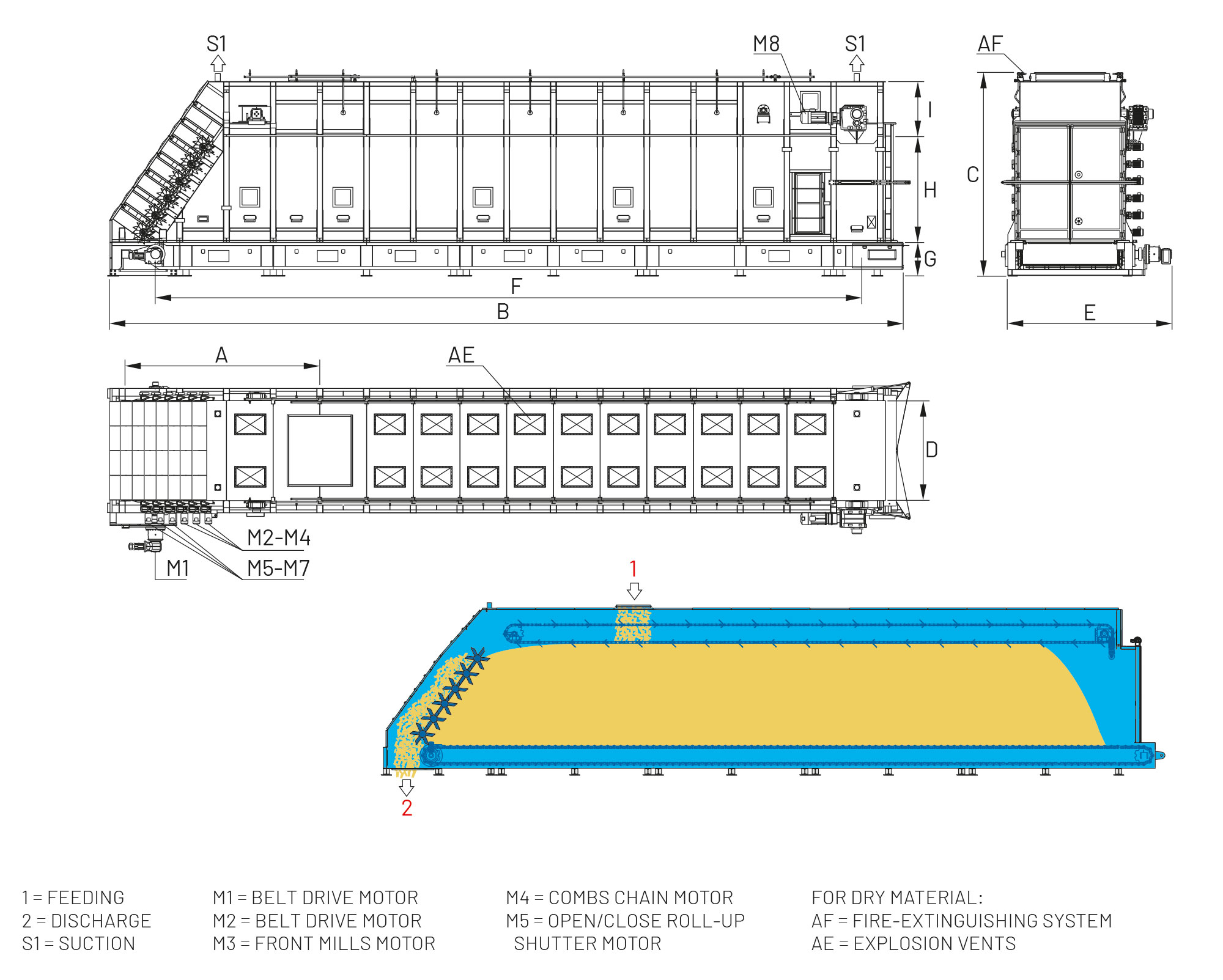

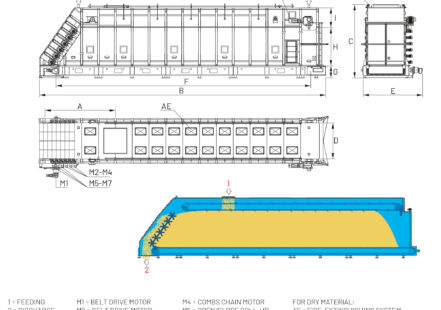

DOSING BIN
Strong modular bin provided with: inspection windows – electronic levels for filling control – fire-extinguishing system for dry materials – explosion protection system for dry materials
Levelling chain
Dosing belt provided with: automatic tensioning system – self-centering system – cleaning brush
Front scalping-fluidizing rolls
Drive systems
Pre-wiring of all electrical fittings up to a junction box.
VOLUMETRIC ACCURACY FROM DOSING BIN
For wet/dry flakes: +/- 2,5 % relating to instant flow
Pre-condition: continous-constant feeding of material and constant running of dosing bin
Employment range: 10-100% of nominal throughput
BENEFITS
Perfect mixing of particle flow from scalping rolls milling the all front section
High-stable volumetric accuracy
Very high weighing-metering accuracy
Accuracy is related to instant flow and not to the full scale value as in conventional systems
